406 cu. in. 10.4:1 Comp.
BBK 58mm Throttle Body
TPIS Large Tube Runners
TPIS Big Mouth Intake Manifold
* all extremely ported and polished to match *
Air Flow Research 195 Heads 2.02/1.60 valves * ported to match intake *
Custom ROSS Forged Pistons
Forged Crank
Comp Cams Custom Grind
CompuCams 1.6 Roller Rockers
. *Soon to be Holley Stealth Ram
Transmission:
700-R4 Automatic Transmission
*to many modifications
B&M Transmission cooler
Custom Made bracket for Transmission cooler
TPIS Alum. Driveshaft
Safety loop
Power Adder:
Nitrous Express 5750 adj. 75-150 shot (added 200 shot jets)
Twin 10 lb bottles
*soon to be dual stage
Exhaust:
SLP 1 5/8" Jet-Hot coated headers
Flowmaster 30 series muffler
K&N air filters
3" piping
No cat
No Smog equipment
*Soon to be 1 3/4" Hooker LT's
Ignition System:
MSD 6AL Ignition
ACCEL Distibuter
NGK Spark plugs
ACCEL 300 Spark plug wires 8.8mm
Fuel System:
30 Lb/hr SVO injectors
255 pgh RaceTronix Fuel Pump
Boostest fuel pump
AFPR set at 59 psi
Rear end:
10 bolt (please may it keep holding)
3.42 gears posi-traction
Suspension:
Energy suspension bushing kit
Hotchiks
KYB G-2 Shocks/struts *1 3/4" drop *
Lower Trailing Arms
Adjustable Panhard Rod
Tie Rod Sleeves

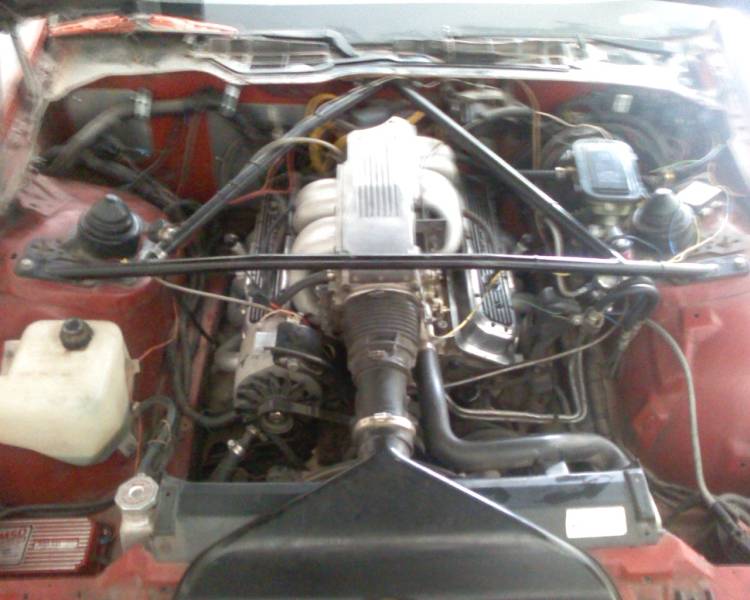

Edelbrock 3 point Strut Tower Brace
Sub Frame Connectors
Polyurithane ANTI-SWAY BAR (Stabilizer Bar) END LINKS & BUSHINGS
Polyurithane TRANSMISSION MOUNTS
Polyurithane STRUT ROD BUSHINGS
Polyurithane MOTOR MOUNTS
Polyurithane CONTROL ARM BUSHINGS
Cragar street-star 15x8 wrapped in 235/60 rubber (front)
Cragar street-star 15x8 wrapped in 255/60 rubber (rear) –or-
Cragar street-star 15x10 wrapped in MT E.T. Streets 26x11.5x15’s
Brakes:
Custom 10.4" drilled/slotted/zinc dipped brakes
*soon to be 1LE 2 piston Calipers
Hawks Z-rated * soft * brake pads
Earls Stainless Steel Brake Lines
Cooling System:
Griffin Alum. Radiator
Water-Wetter
160* t-stat
Future Modifications
ZR-1 17x9.5 * front* wrapped in Nitto 555’s 275/40’s
ZR-1 17x11 * back* wrapped in Nitto 555R’s 315/35's
-or-
17x8 chrome IROC's

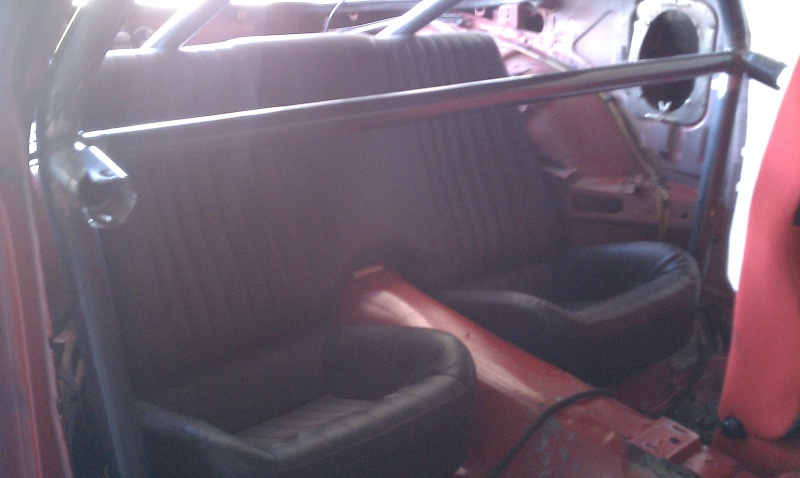

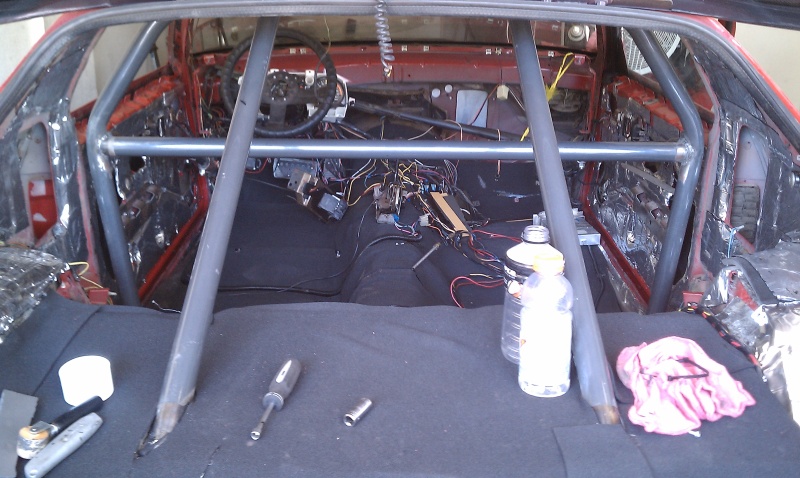

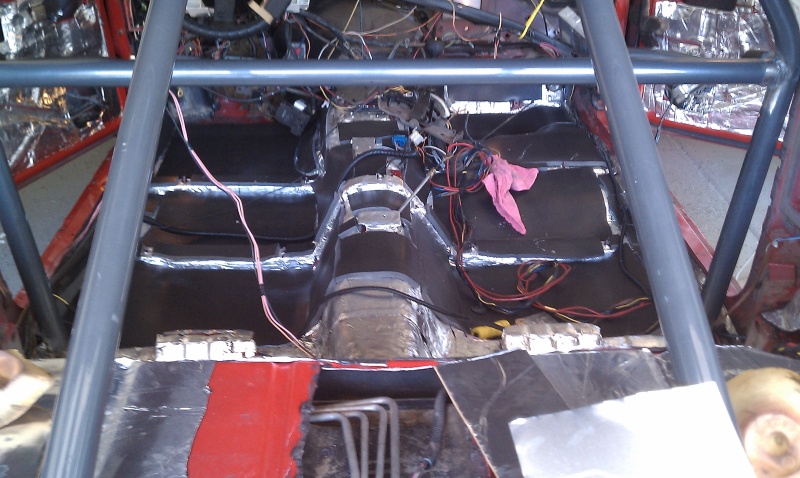

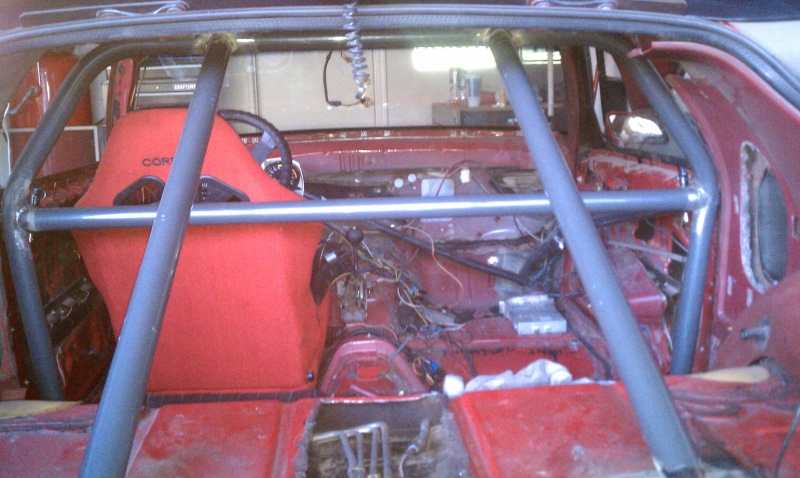

8 pt Roll-cage
Simpson 5-point Harness
5" Auto-Meter 200 MPH speedometer
5" Auto-Meter 7000 RPM Tachometer
1 5/8" Auto-Meter temp, oil, gas, battery,

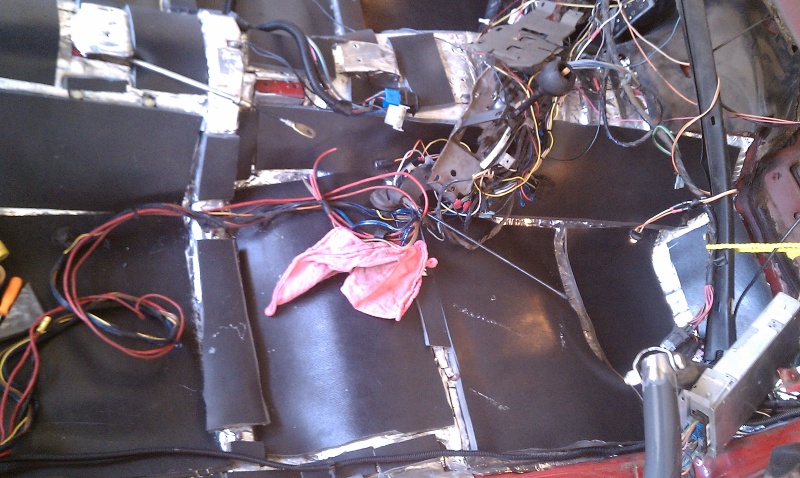

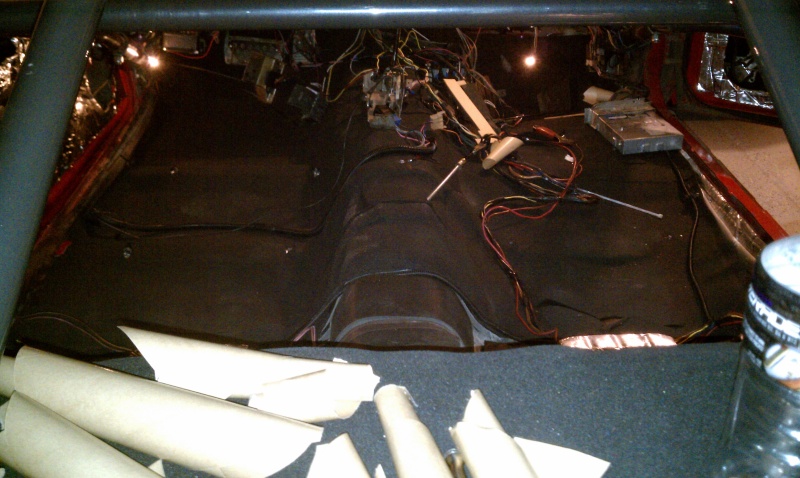

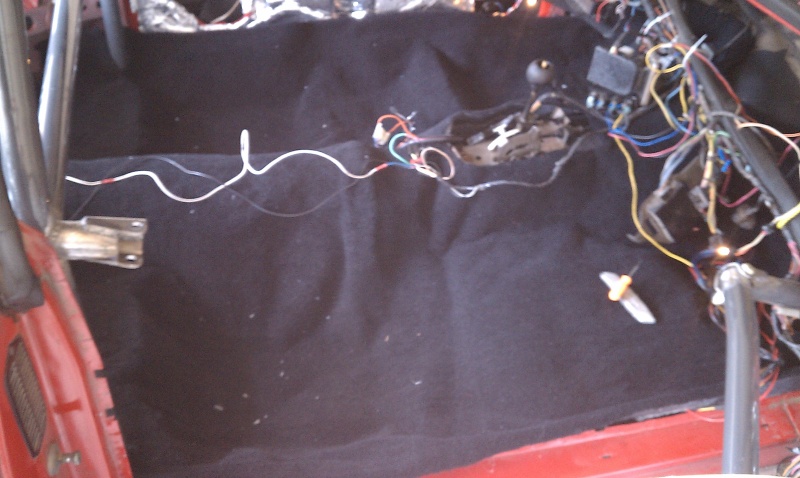

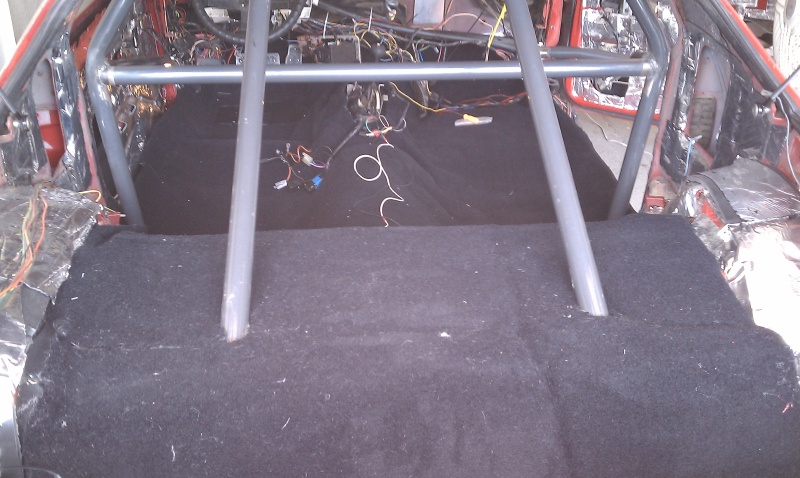

New red Carpet

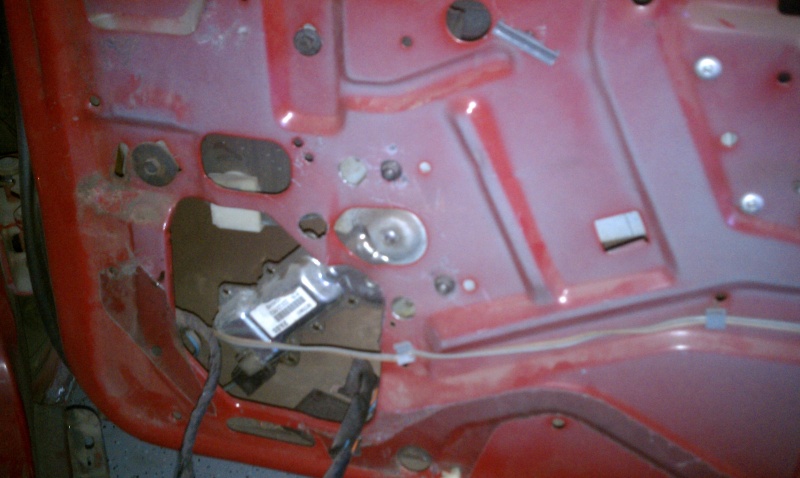

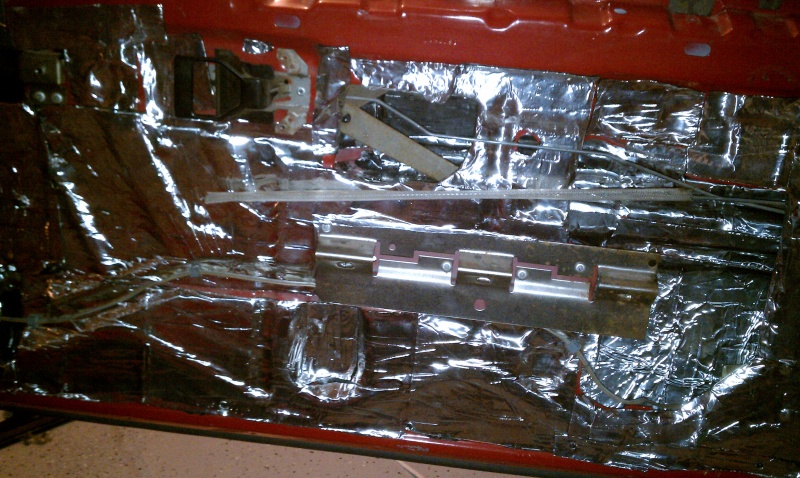

Custom Door panels
maybe a stereo
|
